Module-Heated Seats C1 (Standard) Connector End View (D3846A)

Harness-Family: Seat_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1-2177196-1_2177231-1

Part Description: Not Available

Connector No: D3846A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Heated Seats C1 Connector End View (Standard)

Courtesy of CHRYSLER

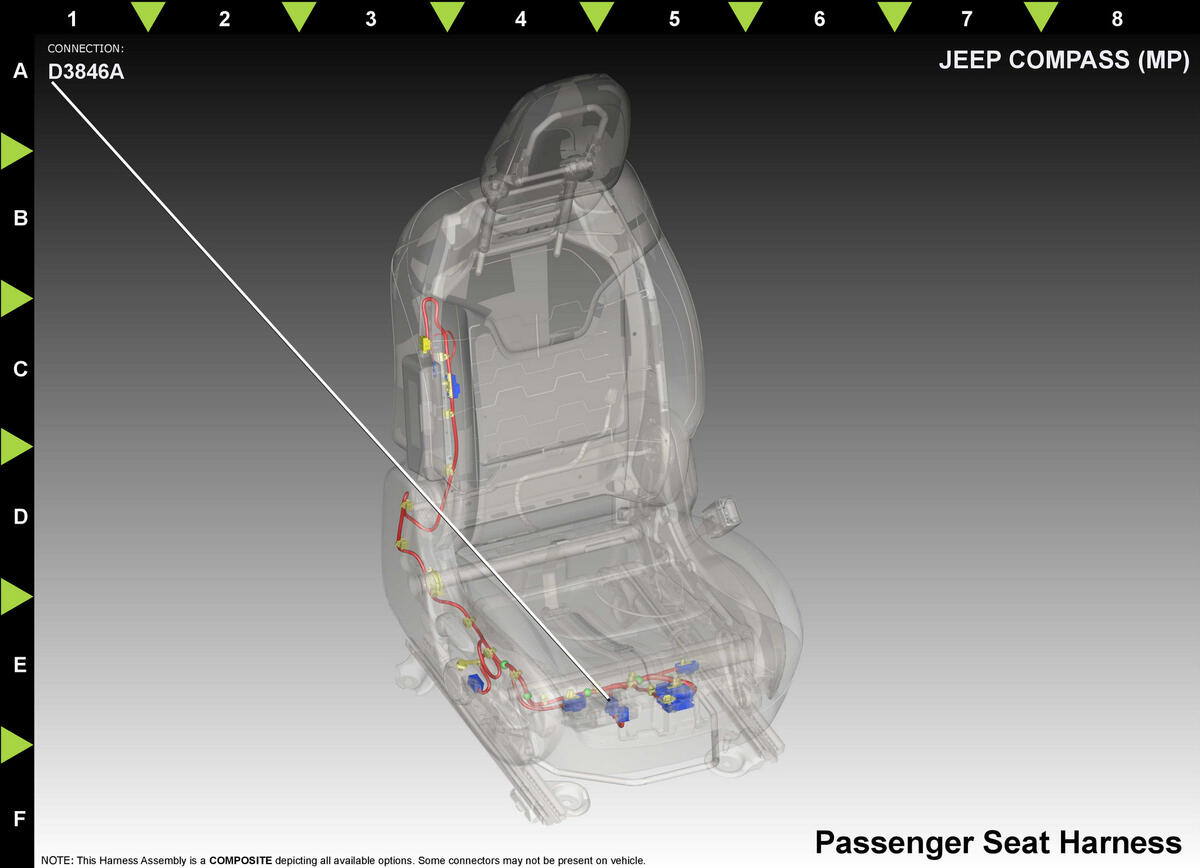

Fig 2: Module-Heated Seats C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D163

WH/DB

0.50

CAN IHS (+)

N/A

D164

0.50

CAN IHS (-)

N/A

Z940

1.5

GROUND

N/A

F943

PK/GN

1.5

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
