Fuse F09 7.5A (Standard) Connector End View (F09)

Harness-Family: PDC_FRB

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F09

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

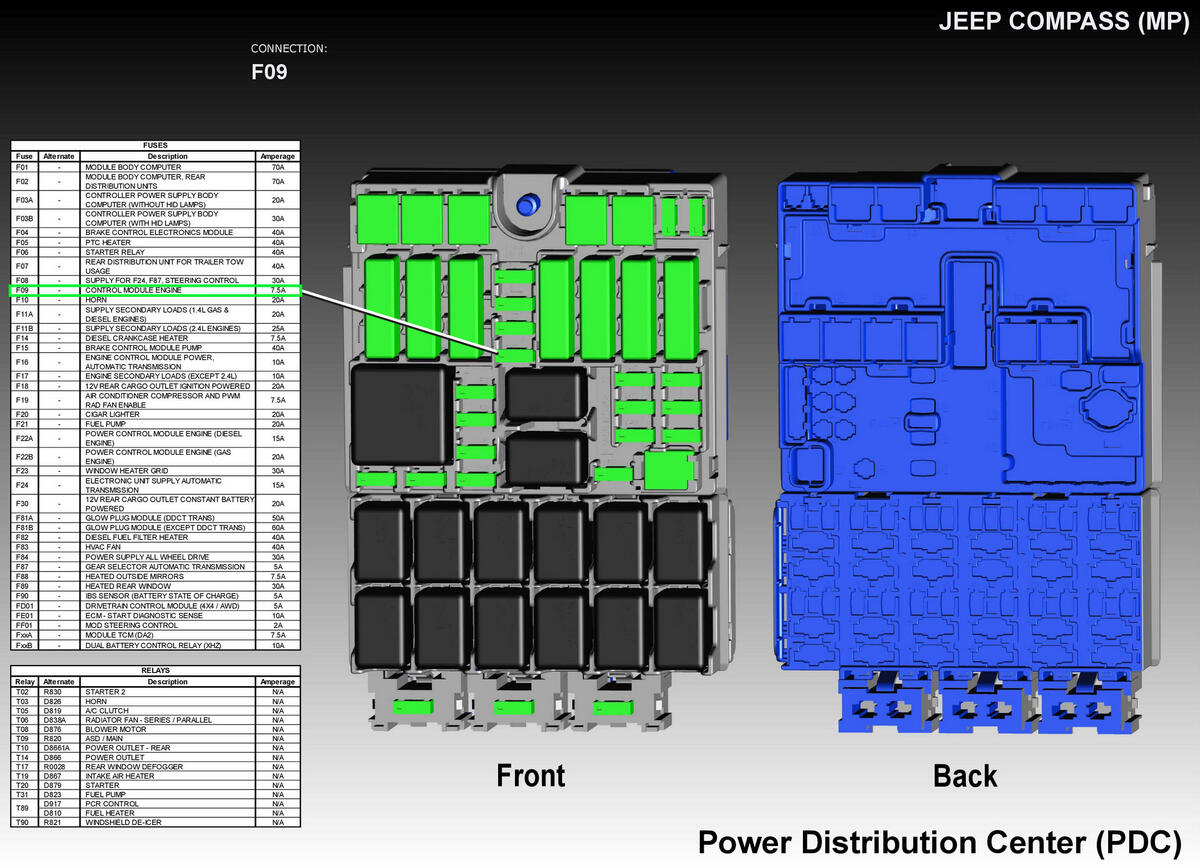

Fig 1: Fuse F09 7.5a Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Fuse F09 7.5a Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

INTERNAL

FUSED B(+)

N/A

A908

INTERNAL

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
