Module, Active Noise Cancellation (ANC): Removal: Module

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

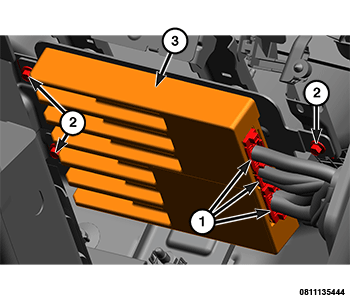

    GC0186807Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the instrument panel wire harness connectors (1) from the Active Noise Cancellation (ANC) module (3).
  4. Remove the fasteners (2) and remove the ANC module and bracket assembly from the vehicle.

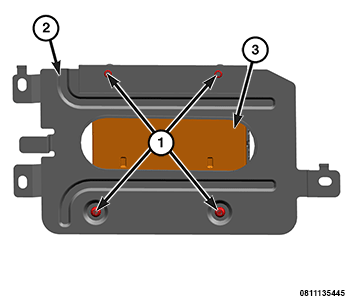

    GC0186441Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (1) to remove the ANC module (3) from the bracket (2).
