Switch, Power Window: Installation: Front

Courtesy of CHRYSLER GROUP, LLC

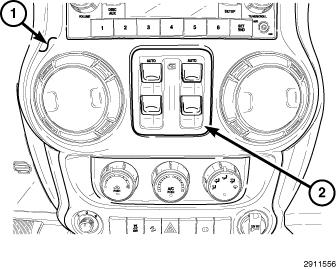

1. Position the window switch assembly (2) and connect electrical harness connectors.
2. Position the switch and press into place, engaging the integrated latches.
3. Connect negative battery cable.
