Stabilizer Bar, Front: Installation: Switch

GC0148172Courtesy of CHRYSLER GROUP, LLC
  1. Press the switch pod (1) firmly into the instrument panel opening making sure the retaining tabs seat properly.

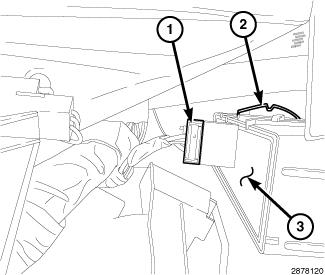

    GC0148173Courtesy of CHRYSLER GROUP, LLC
  2. Attach the electrical connector (1).

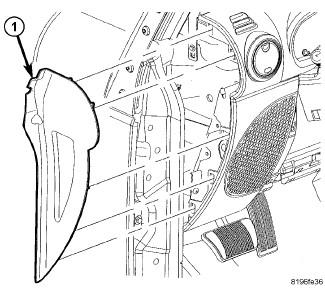

    GC0131421Courtesy of CHRYSLER GROUP, LLC
  3. Install the instrument panel end cap (1).
  4. Connect the negative battery cable.
