Home >> Jeep >> 2018 >> Wrangler JK Rubicon, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> 3.6L - DTCS P0643 To P2122 >> DTC Troubleshooting >> P0703-Brake Switch 2 Performance >> Notes

P0703-Brake Switch 2 Performance: Notes

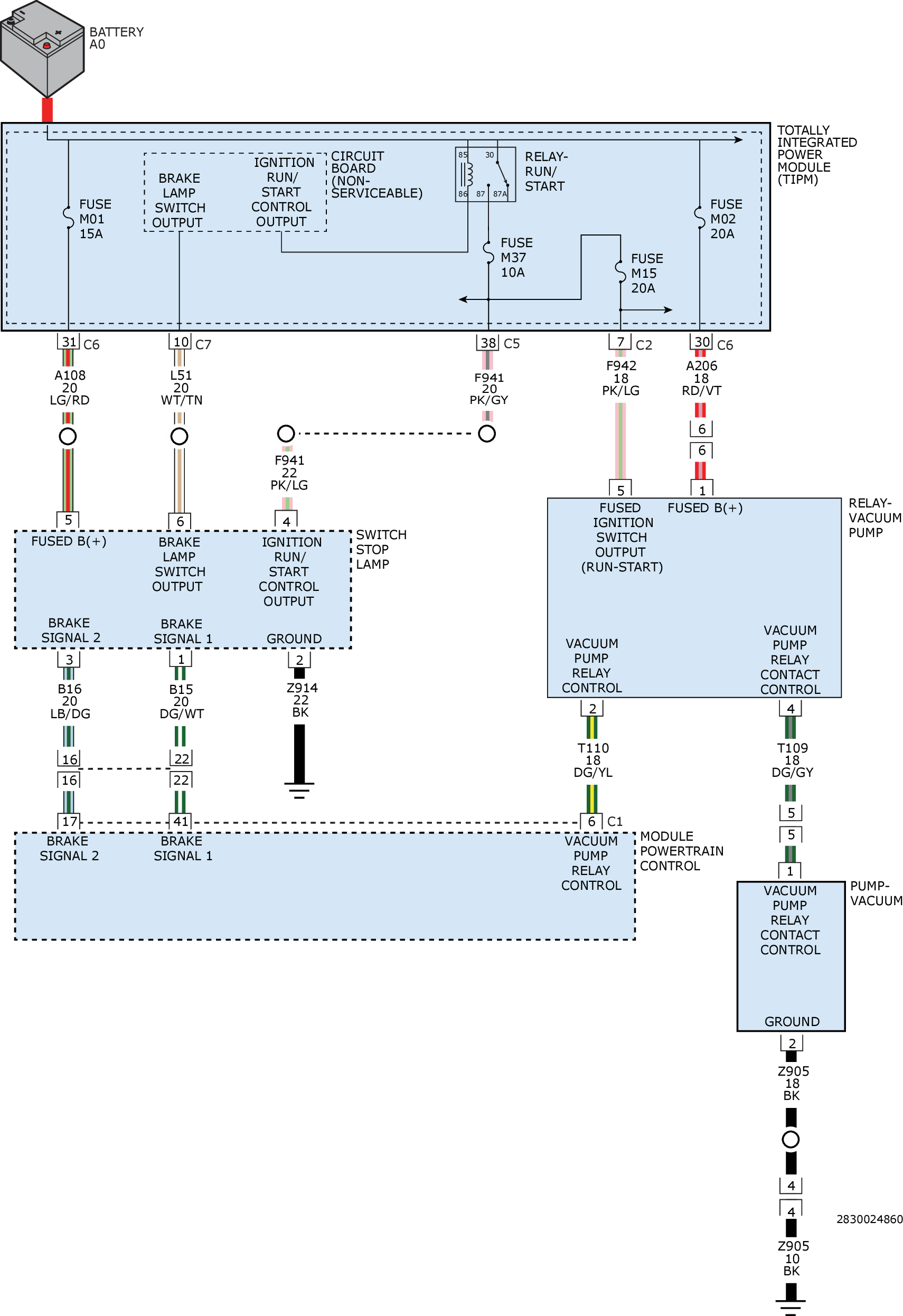

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

GC0161072

Courtesy of CHRYSLER GROUP, LLC
