Filter, Diesel Particulate: Removal

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Disconnect the differential pressure hoses (4) from the tubing.
Remove the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Manual trans shown, automatic transmission similar.

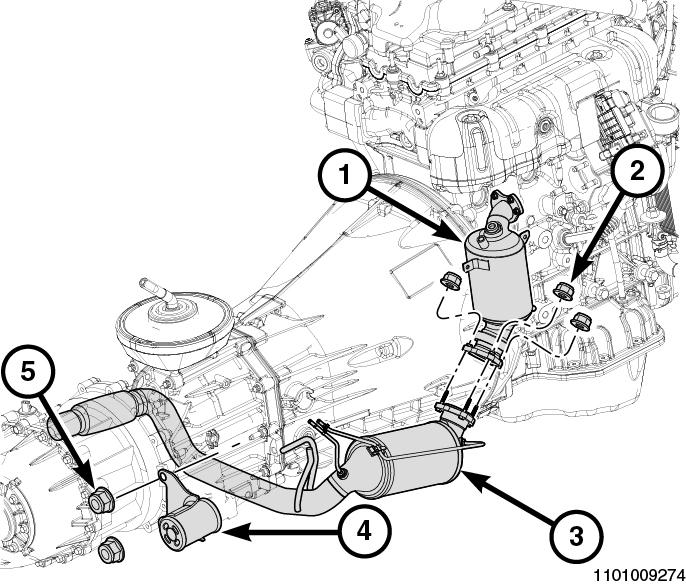

On manual transmission models, remove nuts (5) and the steady rest mount (4).

Courtesy of CHRYSLER GROUP, LLC

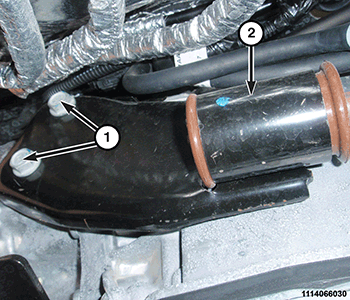

On automatic transmission models, remove the bolts (1) and the steady rest mount (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (2) and the Diesel Particulate Filter (DPF) assembly (3).
