Charging System (Service Information): Generator: Installation: 2.8L

Courtesy of CHRYSLER GROUP, LLC

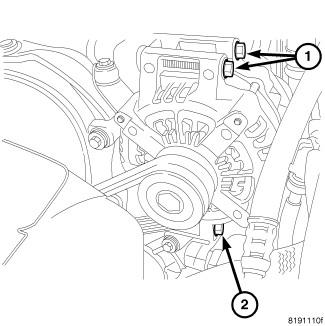

1. Position the generator to engine. Install two upper mounting bolts (1).
2. Install the two lower mounting bolts (2).
3. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

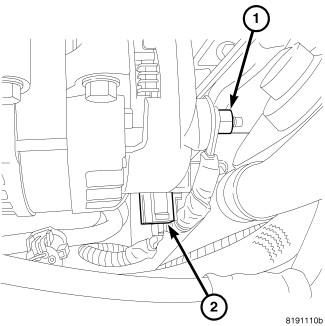

4. Snap field wire connector (2) into generator.
5. Install the negative battery cable to battery.
