Camera, Rear: Installation: Notes
WARNING: This page is about a different car, the 2018 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Use caution when installing camera as to not scratch the lens surface.
- Place the camera on the mounting bosses and verify proper alignment before installing the mounting fasteners.

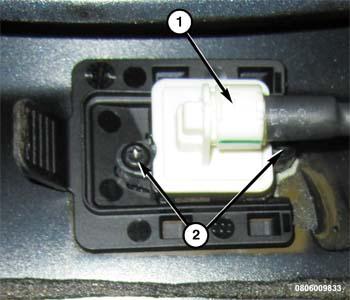

- Install the camera mounting fasteners (2). Torque the mounting fasteners to 9 IN. LBS.
- Connect the electrical harness connector (1).

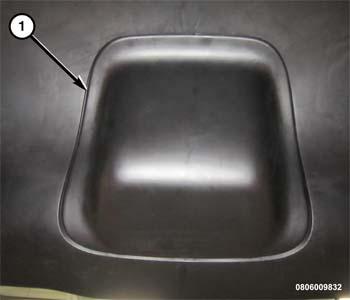

- Install the rear camera trim cover (1).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Inspect the camera lens and clean if necessary.
