Module, Park Assist: Description

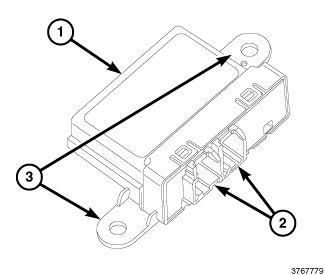

The Park Assist Module (PAM) (also known as the ParkTronic System/PTS module) (1) is secured with two retainers and two screws through two mounting tabs (3) integral to the module housing within the right upper D-pillar at the rear of the vehicle. The module is concealed within the D-pillar behind the inner D-pillar trim in the cargo area of the vehicle. Concealed within the molded plastic PAM housing is a microcontroller and the other electronic circuitry of the module. The module housing is sealed to enclose and protect the internal electronic circuitry.
Two connector receptacles (2) containing terminal pins are integral to the downward-facing side of the housing. The module is connected to the vehicle electrical system through dedicated take out and connector of the body wire harness and a jumper harness connects it to the park assist sensor wire harness.
The PAM cannot be adjusted or repaired and, if damaged or ineffective, it must be replaced with a new unit. The PAM software is flash programmable.
