Fascia, Front: Installation: Installation: Notes

WARNING: This page is about a different car, the 2015 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

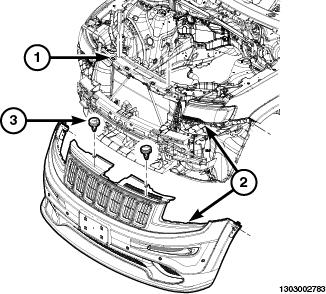

Fig 1: Fascia & Upper Push Pin Fasteners

Courtesy of CHRYSLER GROUP, LLC

Install the fascia, locking the integral latches at the radiator grille assembly (1) and at the wheel well openings (2).
Install the upper push pin fasteners (3).

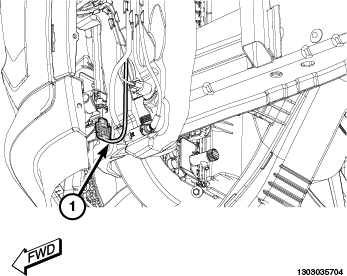

Fig 2: Fog Lamp Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the fog lamp electrical connectors (1), if equipped.

Fig 3: Fascia Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the fasteners (2) securing the fascia (1) to the support brackets.

Fig 4: Wheel Liner 1/4 Turn Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the 1/4 turn fasteners (1) and secure the lower wheel liner to the fascia.

Fig 5: Front Fascia Rivets
Courtesy of CHRYSLER GROUP, LLC
Install the rivets (1) securing the front fascia to each wheel liner.

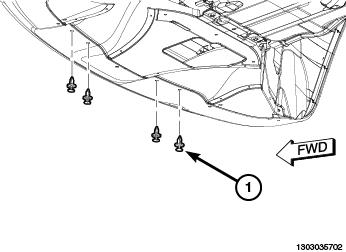

Fig 6: Front Push Pins
Courtesy of CHRYSLER GROUP, LLC
Install the front underbody push pins (1).
