Camera, Rear: Installation: Installation

WARNING: This page is about a different car, the 2015 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear camera to the lamp bar.

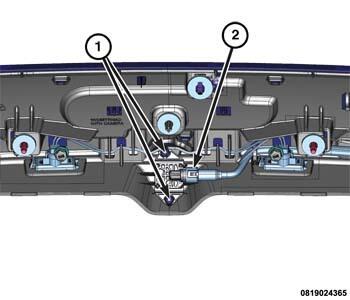

Fig 1: Rear View Camera Mounting Fasteners & Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Install the two rear camera mounting fasteners (1).
Connect the electrical harness connector (2).

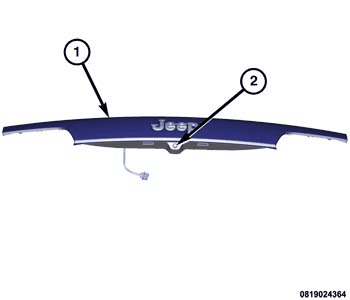

Fig 2: Lamp Bar & Rear Camera
Courtesy of CHRYSLER GROUP, LLC
Install the lamp bar (1). Refer to LAMP BAR, EXTERIOR HANDLE, INSTALLATION .
Connect the negative battery cable.
