Tailpipe, Exhaust: Installation: Notes
NOTE:
Muffler installation is a two-man operation. Never allow the muffler to hang from the isolators. A helper is required so no damage will come to the isolators or to the tailpipe/muffler assembly.
NOTE:
Some exhaust systems are equipped with adjustable tail pipes and can be removed without removing the resonator assembly.
- If equipped with adjustable tail pipes. Install the tailpipe to the resonator outlet pipe and tighten clamp.

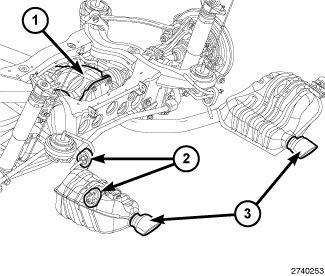

- If equipped with non adjustable tailpipes, position the tailpipe/resonator (3) assembly in vehicle.
- If equipped, install the left side tailpipe/resonator at the flange. Tighten the nuts to 28 N.M (21 ft. lbs.).
- Install tailpipe/resonator insulators (2).
- Install the tailpipe into the exhaust pipe.
