Sensor, Exhaust Pressure: Installation: Diesel

Courtesy of CHRYSLER GROUP, LLC

1. If removed, ensure the exhaust pressure sensor tube is clean and not plugged.

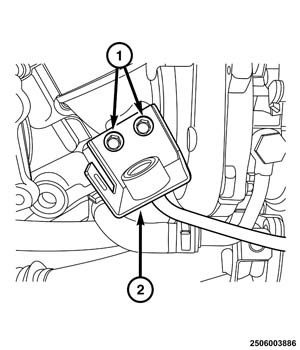

2. If removed, install the exhaust pressure sensor tube. Tighten the bolt (2) to 11 N.m (8 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

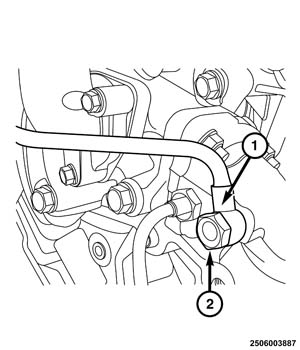

3. If required, using NEW  sealing washers install the banjo bolt (2) securing the exhaust pressure sensor tube (1) to exhaust manifold. Tighten the banjo bolt to 28 N.m (21 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

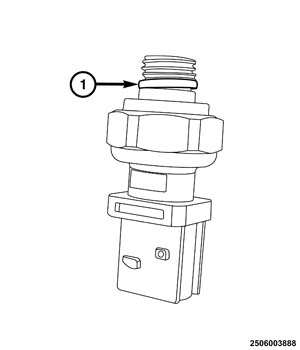

4. Install a NEW  O-ring seal onto exhaust pressure sensor.

   Courtesy of CHRYSLER GROUP, LLC

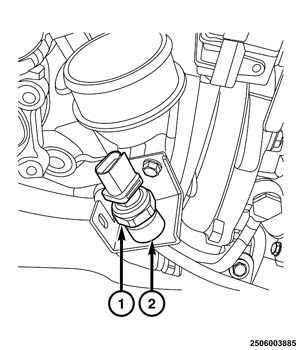

5. Install the exhaust pressure sensor (1) and tighten to 14 N.m (10 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

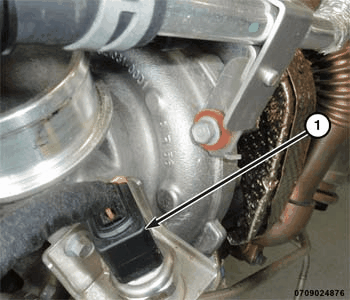

6. Connect the exhaust pressure sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the cowl extension (1) and the side extensions (2, 5) Refer to SILENCER, COWL EXTENSION, INSTALLATION .
8. Install the air cleaner body and air tube. Refer to AIR CLEANER BODY INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

9. Install the engine cover (1).
10. Connect the negative battery cable.
