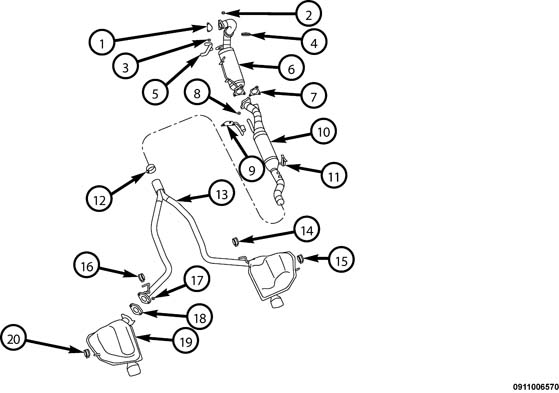

NAFTA Diesel
| 1 - FLANGE GASKET |
| 11 - ISOLATOR |
| 2 - FLANGE NUT |
| 12 - EXHAUST CLAMP |
| 3 - NUT |
| 13 - MUFFLER TAILPIPE ASSEMBLY |
| 4 - EXHAUST CLAMP |
| 14 - ISOLATOR |
| 5 - FRONT BRACKET |
| 15 - ISOLATOR |
| 6 - DIESEL OXIDATION CATALYST (DOC)/DIESEL PARTICULATE FILTER (DPF) |
| 16 - ISOLATOR MUFFLER |
| 7 - FLANGE GASKET |
| 17 - FLANGE NUT |
| 8 - FLANGE NUT |
| 18 - FLANGE GASKET |
| 9 - ISOLATOR |
| 19 - RESONATOR TAIL PIPE |
| 10 - SELECTIVE CATALYST REDUCTION (SCR) |
| 20 - ISOLATOR |
