Panel, Trim: Installation

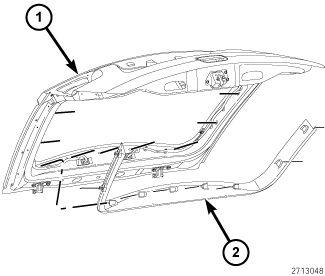

GC0145843Courtesy of CHRYSLER GROUP, LLC
  1. Position the upper trim panel (2), using hand pressure press firmly and evenly until the retaining clips are fully engaged.
  2. Install the flip glass weather strip.
    GC0145842Courtesy of CHRYSLER GROUP, LLC
  3. Connect the wire harness connectors to the tailgate lights.
  4. Position the lower trim panel (1), using hand pressure press firmly and evenly until the retaining clips are fully engaged.
  5. Connect the negative battery cable.
