Panel, Instrument: Installation

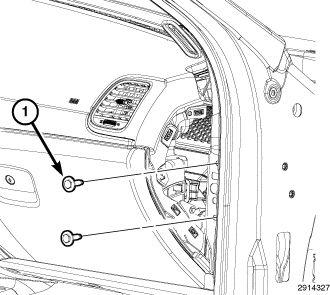

GC0146213Courtesy of CHRYSLER GROUP, LLC
  1. Install the instrument panel assembly.
  2. Install the bolts (1) and tighten to 20 N.m (15 ft. lbs.).

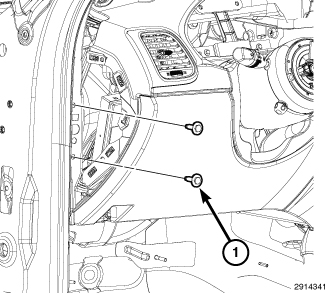

    GC0146214Courtesy of CHRYSLER GROUP, LLC
  3. Install the bolts (1) and tighten to 20 N.m (15 ft. lbs.).

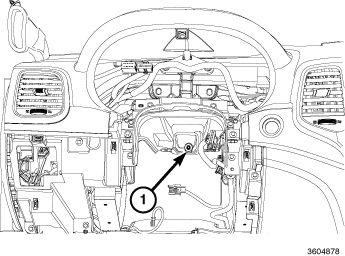

    GC0153817Courtesy of CHRYSLER GROUP, LLC
  4. From inside the vehicle, install the bolt (1) that secures the instrument panel support beam to the support bracket of the cowl panel and tighten to 33 N.m (24 ft. lbs.).

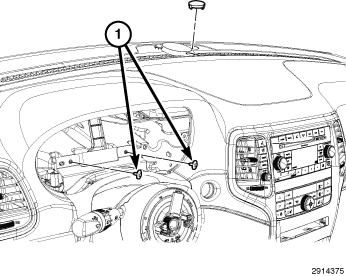

    GC0146216Courtesy of CHRYSLER GROUP, LLC
  5. Install the bolts (1) and tighten to 20 N.m (15 ft. lbs.).
    GC0146212Courtesy of CHRYSLER GROUP, LLC
  6. Install the bolts (1) and tighten to 20 N.m (15 ft. lbs.).

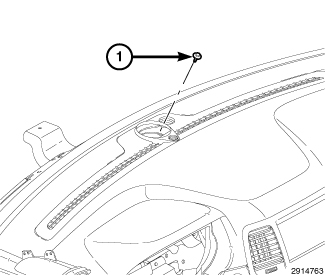

    GC0146217Courtesy of CHRYSLER GROUP, LLC
  7. Install the bolts (1) and tighten to 9 N.m (6.5 ft. lbs.).

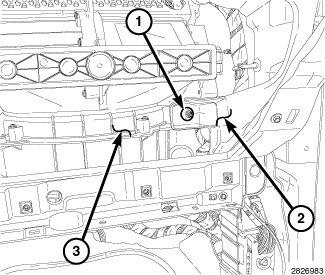

    GC0145627Courtesy of CHRYSLER GROUP, LLC
  8. Install the nut (1) that secures the passenger side end of the HVAC housing (3) to the instrument panel support (2). Tighten the nut to 4.5 N.m (40 in. lbs.).
  9. Install the IP trim panel, glove box shelf and the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
  10. Connect the HVAC electrical connectors. Refer to HOUSING, HVAC, INSTALLATION .

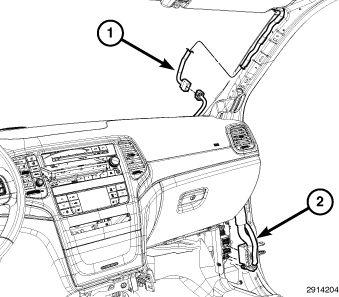

    GC0146211Courtesy of CHRYSLER GROUP, LLC
  11. Connect the electrical connectors (1 and 2).
  12. Install the defroster ducts.
  13. Install the passenger side A-pillar trim. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .

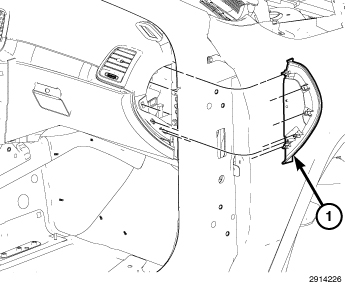

    GC0145714Courtesy of CHRYSLER GROUP, LLC
  14. Install the endcap (1) and seat the clips fully.
    GC0145521Courtesy of CHRYSLER GROUP, LLC
  15. Install the passenger side instrument panel silencer (1).
  16. Install the passenger side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .

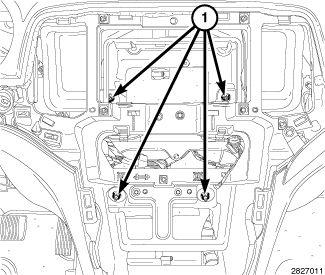

    GC0145628Courtesy of CHRYSLER GROUP, LLC
  17. Install the four nuts (1) that secure the HVAC housing to the center of the instrument panel support. Tighten the nuts to 4.5 N.m (40 in. lbs.).
  18. Install the bin into the center of the instrument panel.
  19. Install the center duct.
  20. Install the radio. Refer to RADIO, INSTALLATION .
  21. Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .

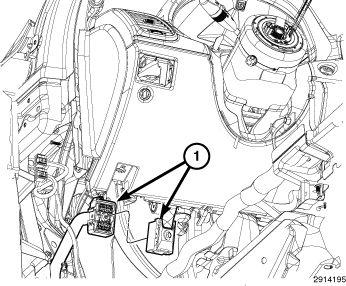

    GC0146210Courtesy of CHRYSLER GROUP, LLC
  22. Connect the electrical connectors (1).
  23. Install the driver side A-pillar trim. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .

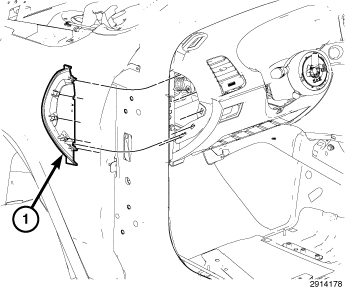

    GC0145520Courtesy of CHRYSLER GROUP, LLC
  24. Install the end cap (1).
  25. Install the driver side cowl trim panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .
  26. Install the instrument cluster. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
  27. Install the ignition switch.
  28. Install the steering column. Refer to COLUMN, INSTALLATION .
