Heater, Engine Block: Installation: 3.6L

GC0175258Courtesy of CHRYSLER GROUP, LLC
  1. Clean the engine block hole and heater seat.

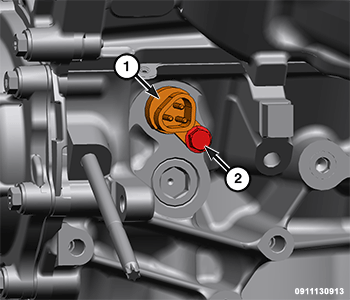

  2. Install the engine block heater (1) and tighten the bolt (2) to 12 N.m (9 ft. lbs.).
    GC0175265Courtesy of CHRYSLER GROUP, LLC

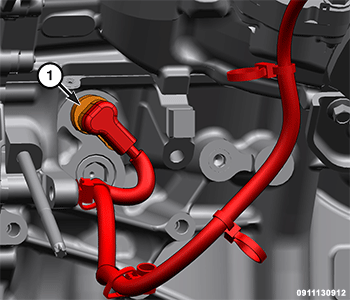

  3. Connect the power cord plug (1) to the engine block heater.
  4. Install A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
