Sensor, TMAP-Intake Manifold: Removal: Intermediate

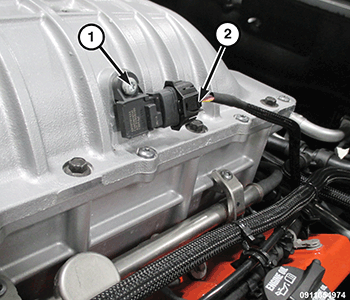

GC0170238Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Clean the area around the Temperature and Manifold Absolute Pressure (TMAP) sensor.
  3. Disconnect the TMAP sensor wire harness connector (2).
  4. Remove the screw (1) and the TMAP sensor.
