Section 631 (Audio/Video/Entertainment/Connectivity (Service Information)): Amplifier: Installation
WARNING: This page is about a different car, the 2017 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

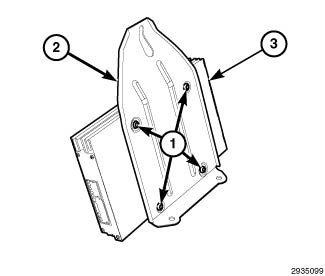

- Install the retainers (1) to the amplifier and amplifier bracket (2).

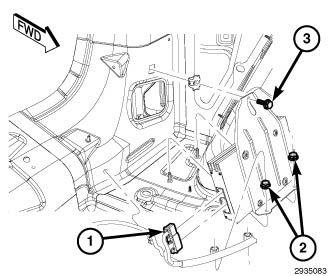

- Position the amplifier into place.
- Install and tighten the mounting fasteners (2) (3).
- Connect the two wire harness connectors (1).
- Install the left quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the battery negative cable.
