Heated Seats (Service Information): Description

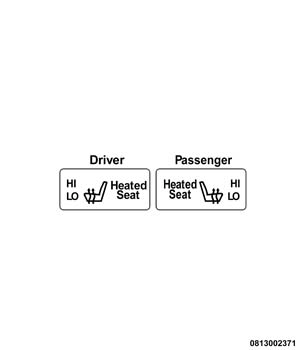

Vehicles with the heated seat option can be visually identified by the two soft heated seat switches located in the Climate control digital display in the radio, and by the two heated seat switches located at the rear of the floor center console, when equipped with rear heated seats. Refer to SWITCH, HEATED SEAT, DESCRIPTION . The heated seat system allows the seat passenger to select from two different levels of electrical seat heating (HI/LO). The heated seat system for this vehicle includes the following major components:
- Heated Seat Switches - Up to four heated seat switches are used per vehicle, including two Light-Emitting Diode (LED) indicator lamps for heat level indication. Two soft push-type switches for the front seats in the radio and two hard switches for the rear seats, if equipped with rear heated seats.
- Heated Seat Elements - Up to eight heated seat elements are used per vehicle, two for each seat. The elements are integral to the individual seat and seat back cushions.
- Heated Seat Module (HSM) - The HSM controls the functions of all the heated seats, and if equipped, the heated steering wheel and vented seats. for information on the HSM. Refer to MODULE, HEATED SEAT (HSM), DESCRIPTION .
