Module, Power Inverter: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

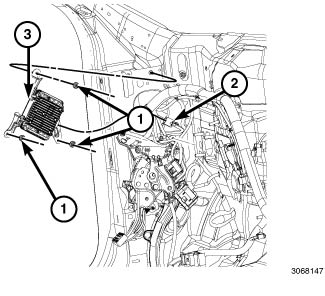

Fig 1: Electrical Connectors, Mounting Bracket Retainers & Power Inverter Module
GC0147721Courtesy of CHRYSLER GROUP, LLC
  1. Install the power inverter to the mounting bracket (3).
  2. Position the inverter into the vehicle and install mounting fasteners (1).
  3. Connect the electrical connectors (2).
  4. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
  5. Connect the battery negative cable.
