Headrest, Front: Installation

WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

WARNING:

Improper installation of the headrests may result in reduced protection of the occupants. If, after installation, the headrest can be removed, without simultaneously pressing the buttons on the master and slave guide sleeves, then the head restraint is installed incorrectly. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE:

For reset procedures. Refer to RESTRAINT, ACTIVE HEAD, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Special care should be taken not to damage to the AHR connector.

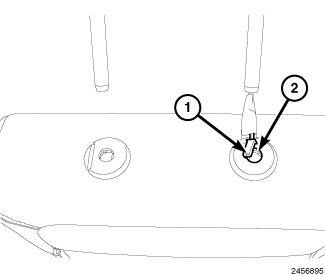

Position the AHR electrical connector (1) into the slave headrest sleeve (2).

Courtesy of CHRYSLER GROUP, LLC

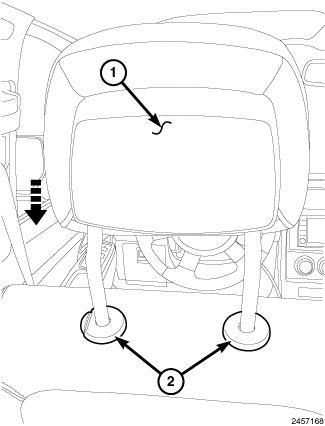

Insert the AHR (1) rods into the sleeves (2) and seat into the lowest notches fully.
NOTE:
At the full down position, there will be a gap between the AHR trim and the seat back trim. (The AHR trim doesn't have a touch condition with the seat back trim.)
Push the adjust button and seat the AHR (1) down fully and then verify that the adjustment functions properly.

Courtesy of CHRYSLER GROUP, LLC

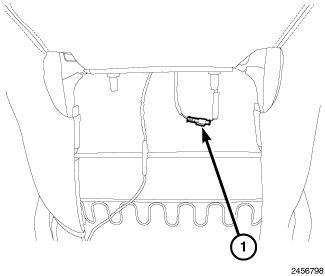

Connect the AHR electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC
Position the back panel (2) back and secure the upper panel hooks (1).
Secure the middle panel hooks (3) and seat the lower clips (4) fully.
