Removal And Installation: Installation

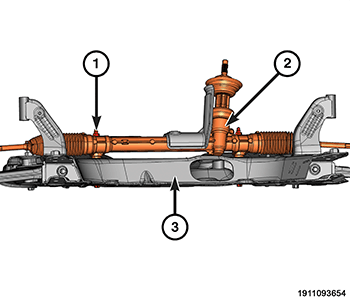

GC0178877Courtesy of CHRYSLER GROUP, LLC
  1. Position the steering gear (2) on the crossmember (3).
  2. Install and tighten the two steering gear bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
