Removal And Installation: 1.4L: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the battery for installation.

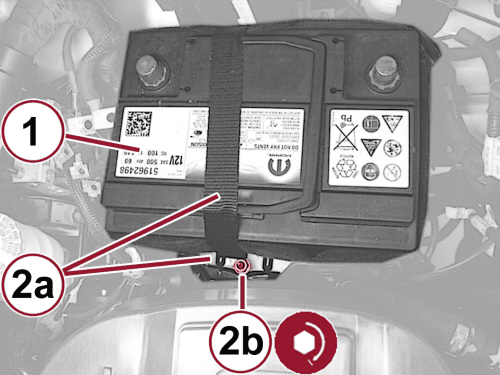

2. Place the retaining strap bracket (2a) on the battery and tighten the nut (2b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

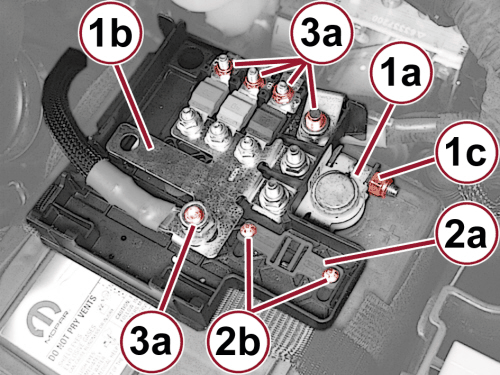

3. Connect the battery positive terminal (1a) to the power box (1b), then tighten the nut (1c) of the positive terminal.
4. Place the plate (2b) and tighten the screws (2c).
5. Connect the electrical connections to the power supply box (1b) and tighten the nuts (3a).
6. Place the lid of the box power on the positive battery terminal, then engage the retainers.

   Courtesy of CHRYSLER GROUP, LLC

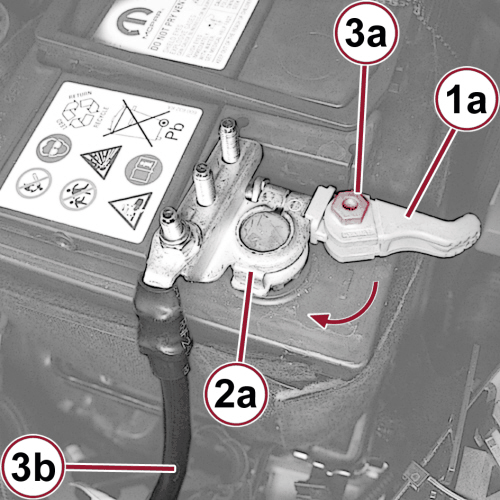

7. Ensure that the control lever (1a) is in the open position.
8. Insert the terminal (2a) to the negative battery pole and press it fully.
9. Turn the lever (1a) and tighten the clamp (2a) on the negative pole. If necessary, rotate the lever (1a) by means of a key applied to the hexagonal socket (3a). Check that the cable (3b) follows the correct path without tension and forcing.
10. Apply manipulate the cable (3b) to check that the terminal (2a) is correctly hooked.
