Home >> Jeep >> 2018 >> Compass Trailhawk >> Repair and Diagnosis (Single Page) >> Transmission >> Transmission Control Systems >> 948TE/9HP48 Automatic Transmission - DTCS P0219-00 To P1726-00 >> DTC Troubleshooting >> P0981-00-Shift Solenoid 4 Control Circuit Range-Performance >> Possible Causes

Possible Causes

Possible Causes
Solenoid Supply 2 Circuit Open
Solenoid Supply 2 Circuit Shorted To Ground
Pressure Control Solenoid D Circuit Open
Pressure Control Solenoid D Circuit Shorted To Ground
Pressure Control Solenoid D Circuit Shorted To Voltage
Pressure Control Solenoid D
Transmission Control Module (TCM)

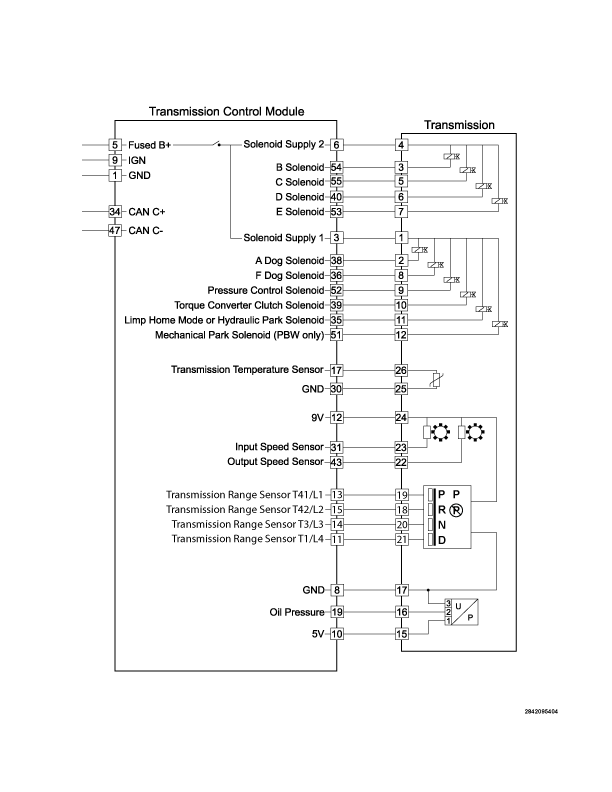

GC0173272Courtesy of CHRYSLER GROUP, LLC

Always Perform The Pre-Diagnostic Troubleshooting Procedure Before Proceeding. Refer To  PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE  .
