Module-Steering Column Control C3 (Standard) Connector End View (D3816C)

Harness-Family: Airbag

Color: NA

Gender: FEMALE

Part Number: HARD_WIRED

Part Description: Not Available

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Steering Column Control C3 Connector End View (Standard)

Courtesy of CHRYSLER

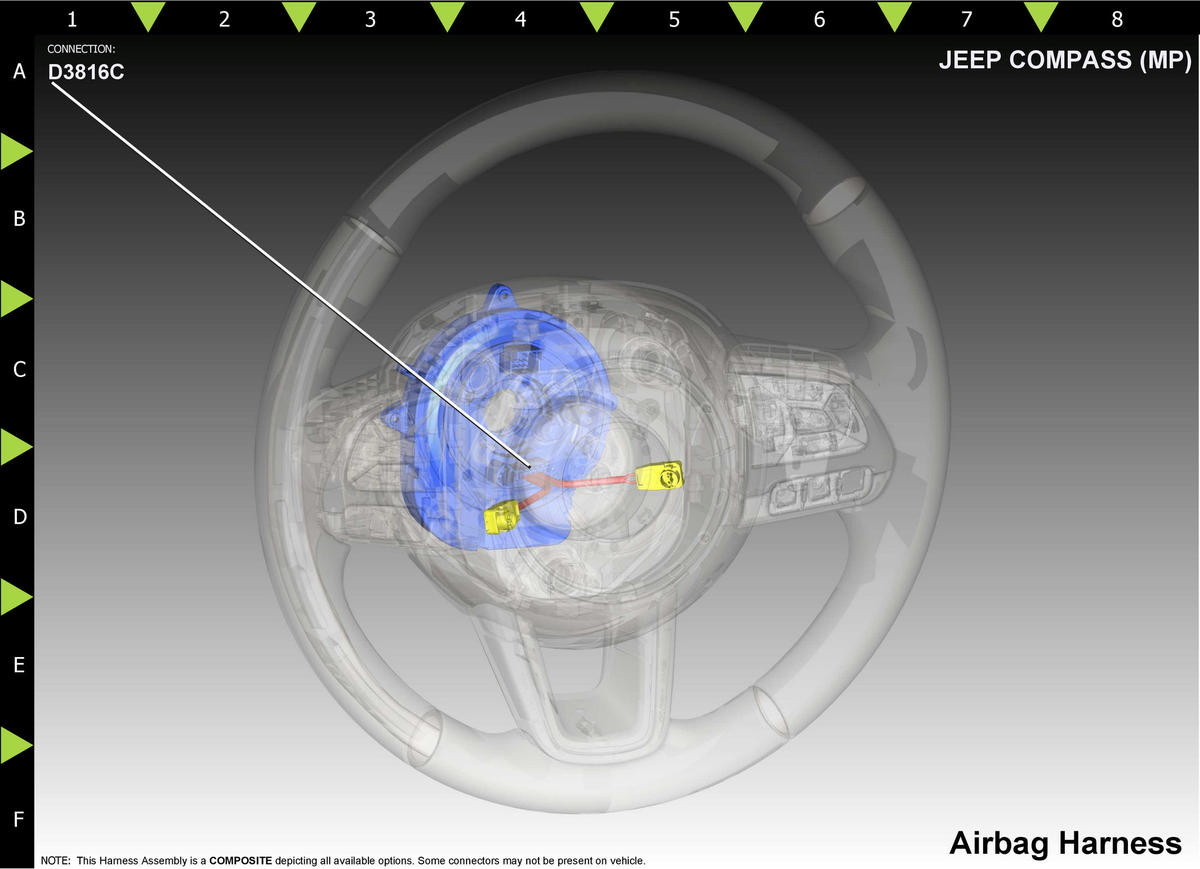

Fig 2: Module-Steering Column Control C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

0.75

DRIVER SQUIB 1 LINE 2

N/A

R45

OG/BK

0.75

DRIVER SQUIB 1 LINE 1

N/A

R61

0.75

DRIVER SQUIB 2 LINE 2

N/A

R63

0.75

DRIVER SQUIB 2 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
