Module-Emergency Assistance C4 (Standard) Connector End View (D3115D)

Harness-Family: IP

Color: BROWN

Gender: FEMALE

Part Number: 1924792-6

Part Description: Not Available

Connector No: D3115D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

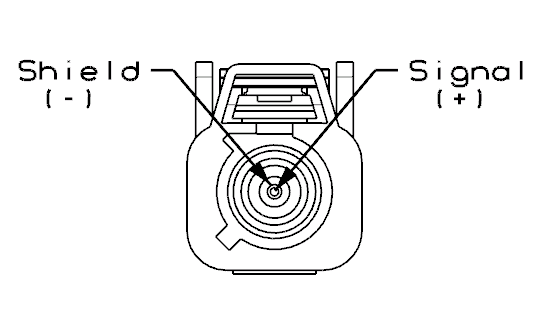

Fig 1: Module-Emergency Assistance C4 Connector End View (Standard)

Courtesy of CHRYSLER

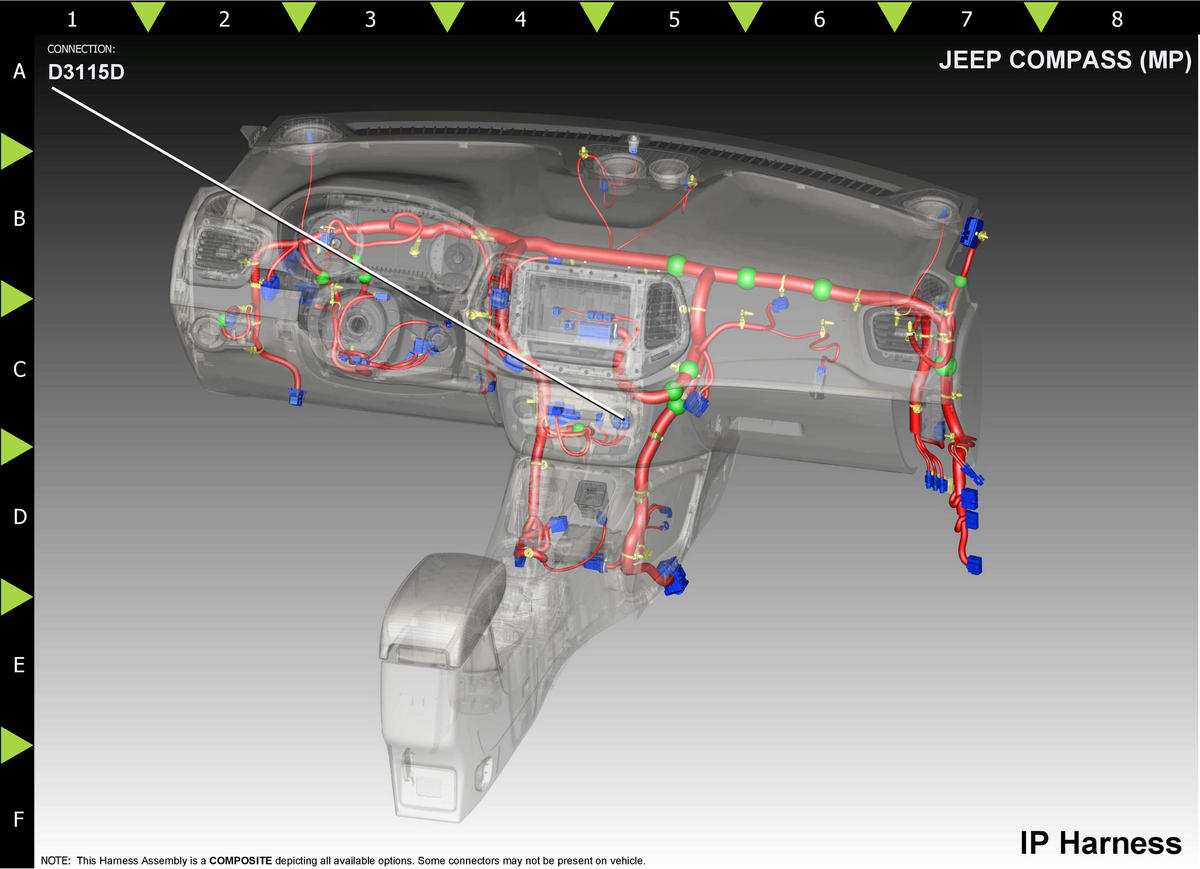

Fig 2: Module-Emergency Assistance C4 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D108

BU/WH

0.82

ANTENNA GPS SHIELD

N/A

WH/BU

0.82

GPS ANTENNA SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
