1.6L Diesel: Removal

1. Disconnect and isolate the negative battery cable.
2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
3. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

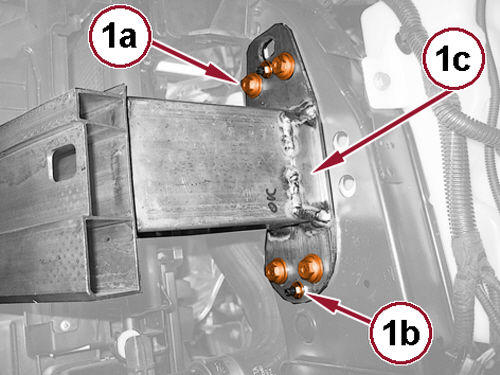

4. Remove the screws (1a), nuts (1b) and remove the bumper (1c).

   Courtesy of CHRYSLER GROUP, LLC

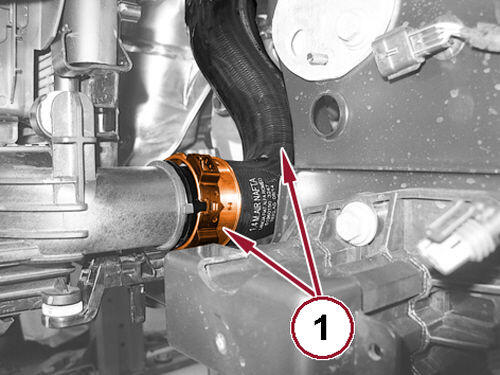

5. Remove the left side Charge Air Cooler (CAC) hose (1) from the CAC.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Left side shown, right side similar.

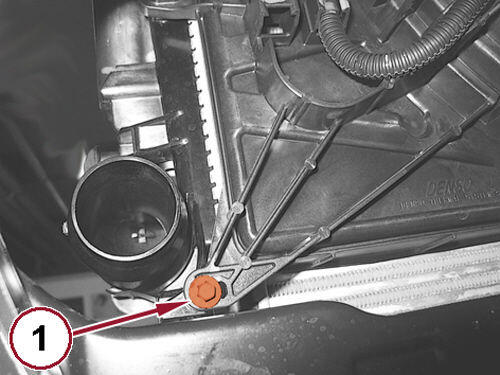

6. Remove the lower cooling fan mounting bolts (1)

   Courtesy of CHRYSLER GROUP, LLC

7. Remove support and lower the vehicle.

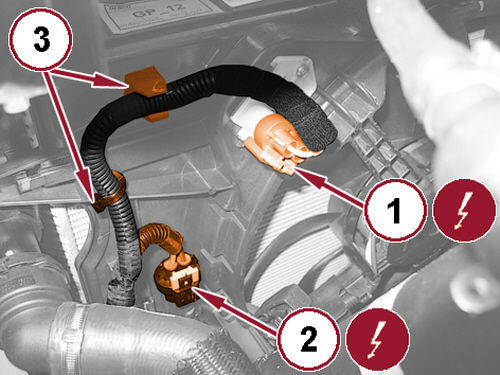

8. Disconnect the cooling fan wire harness connectors (1 and 2).
9. Remove the wiring harness retaining clip and detach the wire harness (3).

   Courtesy of CHRYSLER GROUP, LLC

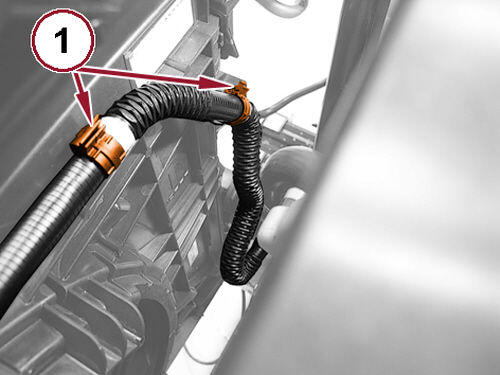

10. Unlock retainer clips (1) and remove the coolant hose from fan shroud.

    Courtesy of CHRYSLER GROUP, LLC

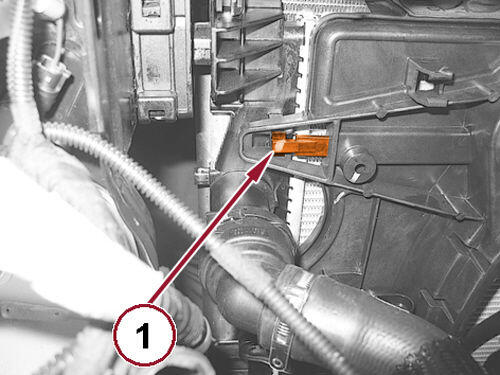

11. Disengage the upper cooling fan retaining clips.

    Courtesy of CHRYSLER GROUP, LLC

12. Raise and support the vehicle.
13. Support the radiator to hold in place.

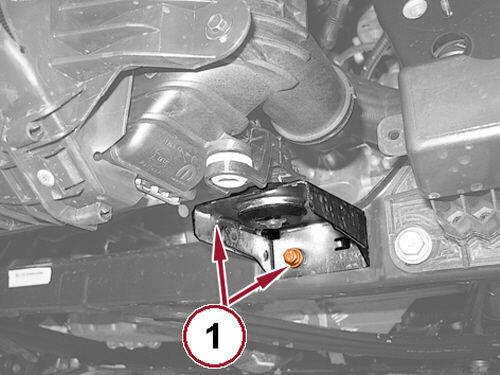

14. Remove the bolt and the lower radiator support bracket (1).

    Courtesy of CHRYSLER GROUP, LLC

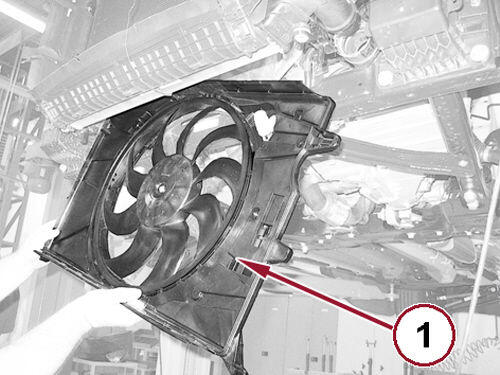

15. Unhook and remove the cooling fan (1) from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the cooling fan (1) onto the radiator.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the lower radiator support bracket and securely tighten the bolts (1).
3. Remove the support holding the radiator in place.
4. Remove support and lower the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

5. Engage the upper cooling fan retaining clips (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the coolant hose onto the fan shroud and lock the retaining clips (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Attach the wiring harness and install the retaining clip (3).
8. Connect the cooling fan wire harness connector (1 and 2).

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Left side shown, right side similar.

9. Raise and support the vehicle.
10. Install the lower cooling fan mounting bolts (1) and securely tighten.

    Courtesy of CHRYSLER GROUP, LLC

11. Install the left side Charge Air Cooler (CAC) hose (1) to the CAC.

    Courtesy of CHRYSLER GROUP, LLC

12. Install the front bumper (1c) with bolts (1a) and nuts (1b) tightened to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
13. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
14. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
15. Connect the negative battery cable.
