1.6L Diesel: Removal

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover. .
3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
4. Drain the cooling system. Refer to STANDARD PROCEDURE .
5. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

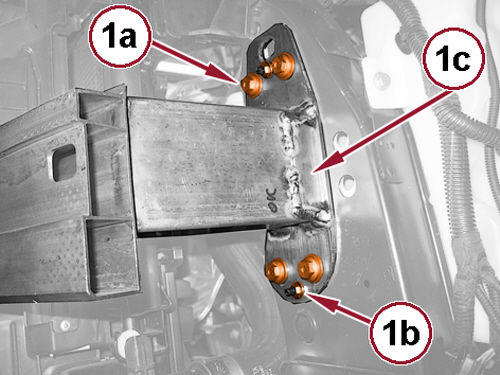

6. Working on both sides, remove the bolts (1a), nuts (1b) and the front bumper reinforcement (1c).

   Courtesy of CHRYSLER GROUP, LLC

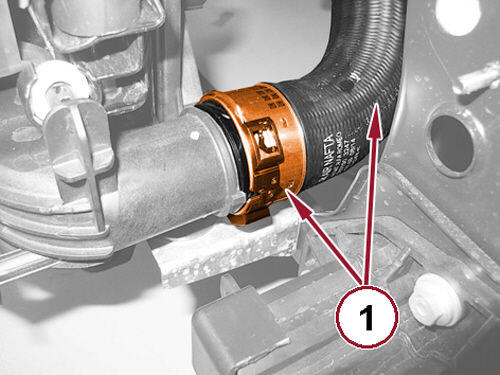

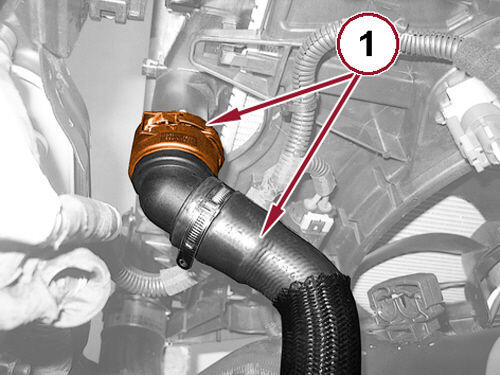

7. Remove the upper radiator hose (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the left side Charge Air Cooler (CAC) hose (1).

   Courtesy of CHRYSLER GROUP, LLC

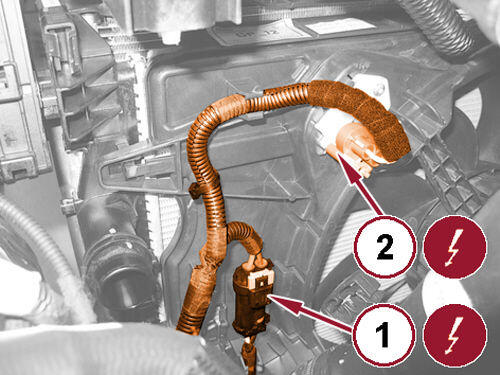

9. Disconnect the cooling fan wire harness connector (1).
10. Disconnect the cooling fan resistor wire harness connector (2).

    Courtesy of CHRYSLER GROUP, LLC

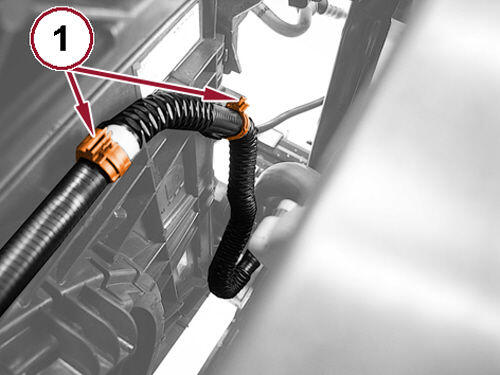

11. Unlock retaining clips (1) and remove the coolant hose from fan shroud.

    Courtesy of CHRYSLER GROUP, LLC

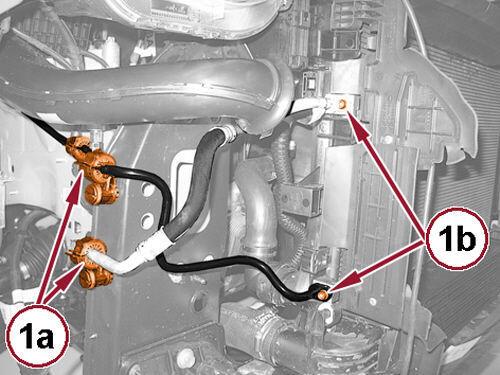

12. Open the retaining clips (1a), remove the bolts (1b) and the A/C lines from the condenser.

    Courtesy of CHRYSLER GROUP, LLC

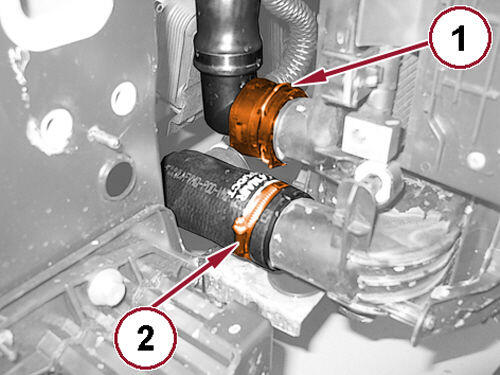

13. Remove the lower radiator hose (1).
14. Loosen clamp (2) and remove the right side CAC hose.

    Courtesy of CHRYSLER GROUP, LLC

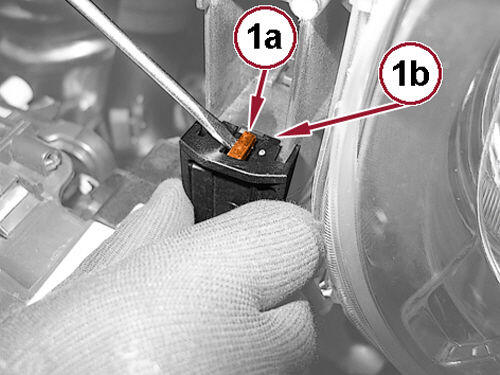

15. Lift the spring (1a) and disengage the clips (1b).

    Courtesy of CHRYSLER GROUP, LLC

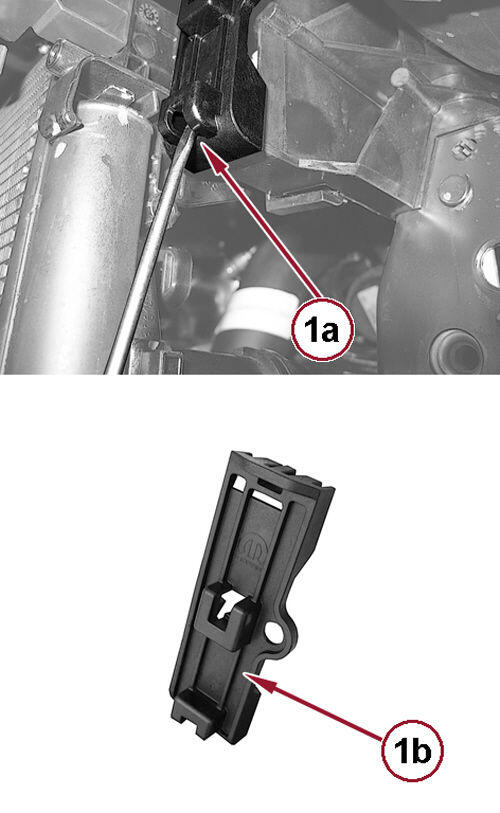

16. Working on both sides, to compress the spring (1a) and remove the retaining block (1b).

    Courtesy of CHRYSLER GROUP, LLC

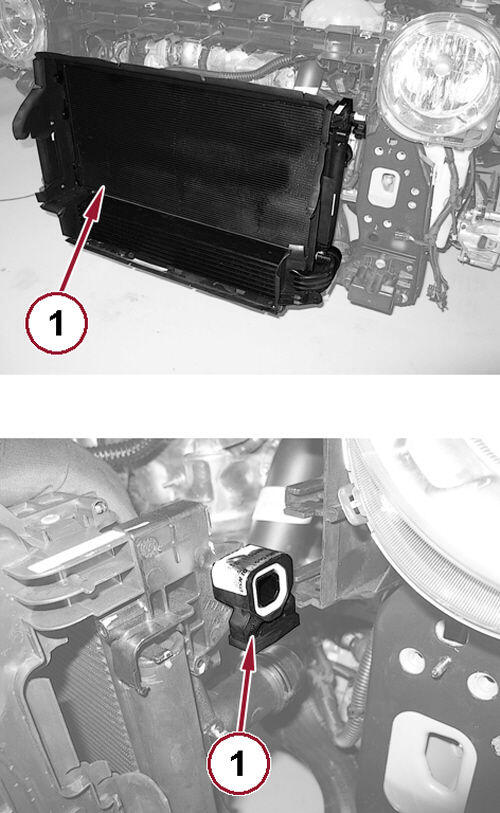

17. Working on both sides, disengage the upper tabs and remove the radiator assembly (1).

    Courtesy of CHRYSLER GROUP, LLC

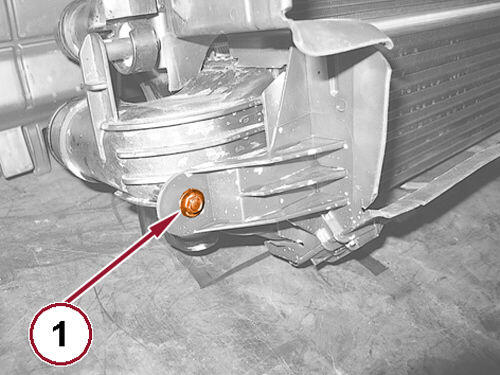

18. Remove the bolts (1) and the air deflector.

    Courtesy of CHRYSLER GROUP, LLC

19. Detach the retaining clips and remove the air duct (1).

    Courtesy of CHRYSLER GROUP, LLC

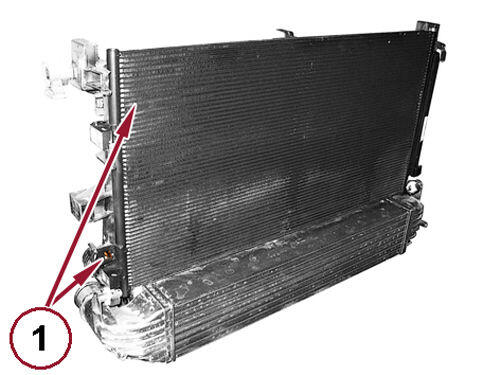

20. Compress the clips and remove the condenser (1).

    Courtesy of CHRYSLER GROUP, LLC

21. Unlock tabs and remove the CAC (1).

    Courtesy of CHRYSLER GROUP, LLC

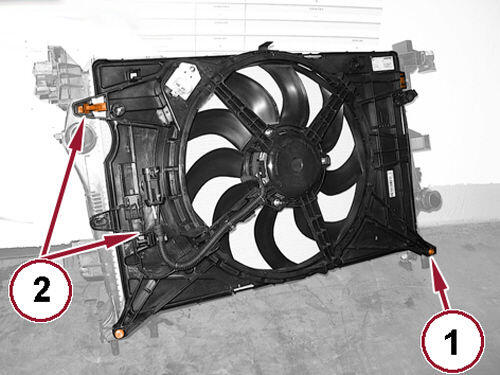

22. Remove the cooling fan bolts (1).
23. Unhook the clips and remove the cooling fan (2) from the radiator.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the cooling fan (2) onto the radiator and engage the retaining clips.
2. Install the cooling fan bolts (1) and securely tighten.

   Courtesy of CHRYSLER GROUP, LLC

3. Install the Charge Air Cooler (1) and engage the retainers.

   Courtesy of CHRYSLER GROUP, LLC

4. Install the condenser (1) to the radiator and engage the retaining clips.

   Courtesy of CHRYSLER GROUP, LLC

5. Install the air duct (1) and engage the retaining clips.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the CAC air deflector and securely tighten the bolts (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the radiator assembly (1) and engage the upper tabs on both sides.

   Courtesy of CHRYSLER GROUP, LLC

8. Install the radiator retaining block (1b) and engage the spring clips on both sides.

   Courtesy of CHRYSLER GROUP, LLC

9. Engage the clips (1b) and lock the spring clip (1a).

   Courtesy of CHRYSLER GROUP, LLC

10. Install the CAC hose and securely tighten the clamp (2).
11. Install the lower radiator hose (1) and engage the spring clip.

    Courtesy of CHRYSLER GROUP, LLC

12. Install the A/C lines to the condenser and securely tighten the bolts (1b) and close the retainer clips (1a).

    Courtesy of CHRYSLER GROUP, LLC

13. Install the coolant hose and close the retaining clips (1).

    Courtesy of CHRYSLER GROUP, LLC

14. Connect the cooling fan resistor wire harness connector (2).
15. Connect the cooling fan wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

16. Install the CAC hose (1) and engage the spring clip.

    Courtesy of CHRYSLER GROUP, LLC

17. Install the upper radiator hose (1) and engage the spring clip.

    Courtesy of CHRYSLER GROUP, LLC

18. Install the front bumper crossbar (1a) and working from both sides, tighten the bolts (1c) and the nuts (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
19. Install the front bumper fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
20. Fill the cooling system. Refer to STANDARD PROCEDURE .
21. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
22. Install the engine cover.
23. Connect the negative battery cable.
