Bearing, Pilot: Installation
- Lubricate new bearing with Mopar high temperature bearing grease or equivalent.

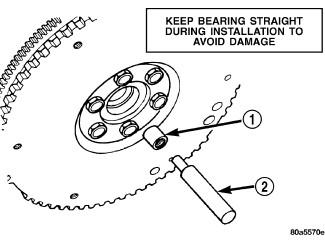

- Start new pilot bearing (1) into crankshaft by hand. Then seat bearing with clutch alignment tool (2).
- Install clutch disc and pressure plate. Refer to DISC, CLUTCH, INSTALLATION .
