Tube, Fuel Tank Filler: Installation

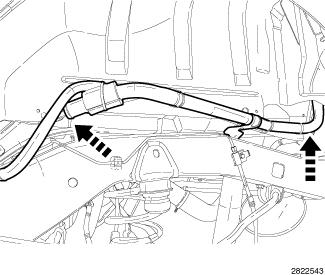

- Position the fuel filler tube, ESIM fresh air hose and the ESIM fresh air filter as an assembly into the vehicle.

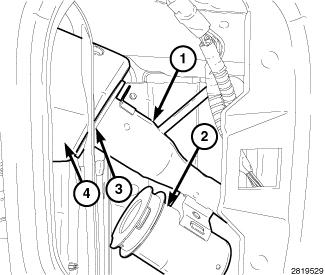

- Reach in through the rear lamp body opening and connect the fuel filler tube (1) into the rubber grommet (3) of the fuel fill housing (4).NOTE:
Install the fuel filler tube support bracket retaining bolt while the body is still in the raised position.

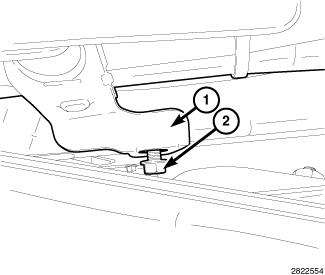

- Position the fuel filler tube support bracket (1), install the retaining bolt (2) and tighten to 19 N.m (14 ft. lbs.).

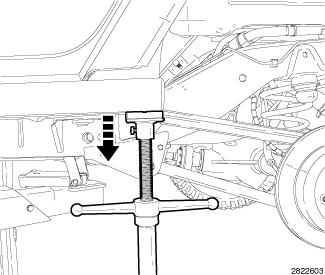

- Lower the body onto the frame and install the body isolators. Refer to ISOLATOR, BODY, INSTALLATION
.

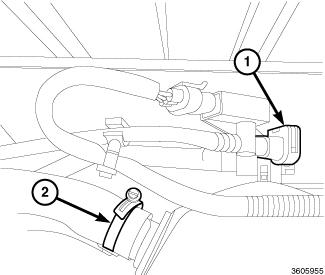

- Connect the lower fuel filler tube to the fuel tank and tighten the hose clamp (2) to 3 N.m (30 in. lbs.).
- Connect the ORVR vacuum line quick-connect fitting (1) to the ORVR control valve. Refer to QUICK-CONNECT FITTINGS
.

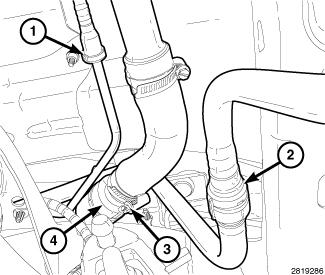

- Connect the lower fuel filler tube to the upper fuel filler tube (4) and tighten the hose clamp (3) to 3 N.m (30 in. lbs.).
- Connect the ESIM fresh air hose quick-connect fitting (2) to the fuel filler tube. Refer to QUICK-CONNECT FITTINGS .
- Connect the ORVR vacuum line quick-connect fitting (1) to the fuel filler tube. Refer to QUICK-CONNECT FITTINGS
.

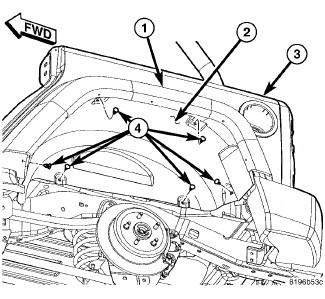

- Install the left rear wheelhouse splash shield (2). Refer to SHIELD, SPLASH, WHEELHOUSE, INSTALLATION .
- Install the wheel and tire. Refer to WHEEL INSTALLATION
.
- Lower the vehicle.
- Install the fuel filler cap.

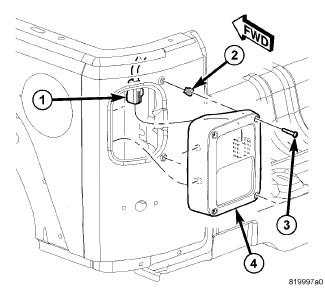

- Install the left rear lamp unit (4). Refer to LAMP, TAIL STOP TURN, INSTALLATION .
- Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
- Start the vehicle and check for leaks.
