Antenna, Navigation: Installation
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
In vehicles equipped with the optional satellite radio system, the navigation antenna is serviced as a unit with the combination antenna located on the roof panel. Refer to ANTENNA, SATELLITE, REMOVAL .

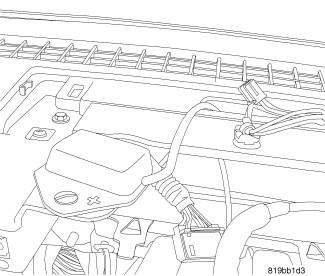

- Position the Global Positioning System (GPS) antenna to the instrument panel base trim.
- Install the two plastic push-in fasteners that secure the GPS antenna to the instrument panel base trim.
- Install the Radio Receiver Module (RRM) into the instrument panel. Refer to RADIO, INSTALLATION .
- Install the center bezel onto the instrument panel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
