Antenna, Navigation: Description

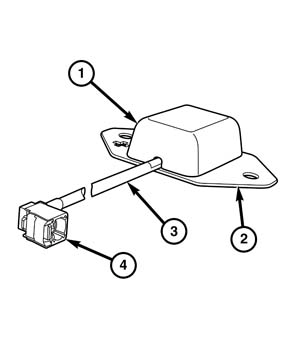

In vehicles equipped with the navigation system and the optional satellite audio feature the navigation antenna has been integrated into the satellite antenna on the roof of the vehicle. Refer to ANTENNA, SATELLITE, OPERATION . In vehicles equipped with the navigation system, but not equipped with the optional satellite audio feature, a dedicated navigation antenna module (1) is used.
The dedicated navigation antenna module is located near the top of the instrument panel base trim, concealed behind the instrument panel center bezel. The navigation antenna module has a stamped metal mounting flange (2) that is secured to the instrument panel base trim by two push-in plastic fasteners. A single pigtail cable (3) with an integral connector (4) exits the antenna module and is routed through the instrument panel to the navigation unit, which is integral to the Radio Receiver Module (RRM).
The dedicated navigation antenna module cannot be adjusted or repaired. If damaged or ineffective the entire unit must be replaced.
