Sensor, Ambient Temperature: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Position the ambient temperature sensor in the vehicle.

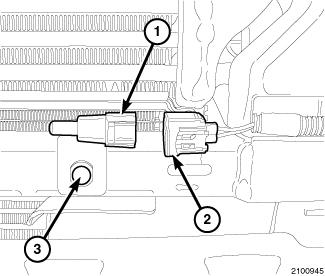

2. Install the retainer (3) that secures the ambient temperature sensor to the lower cross brace.
3. Connect the wire harness connector (2) to the ambient temperature sensor (1).
4. Install the grille assembly. Refer to GRILLE, INSTALLATION .
5. Connect the battery negative cable.
