Unit, ELECTROHYDRAULIC Control: Installation

Courtesy of CHRYSLER GROUP, LLC

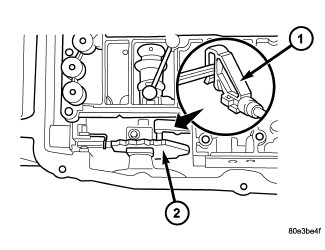

1 - SELECTOR VALVE

2 - DETENT PLATE

1. Position the electrohydraulic unit in the transmission housing.
2. Insert selector valve (1) in driver of detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2).

   Courtesy of CHRYSLER GROUP, LLC

   1 - HEAT SHIELD

   2 - ELECTROHYDRAULIC UNIT

   3 - BOLT

   4 - OIL FILTER

   5 - OIL PAN

   6 - CLAMPING ELEMENT

   7 - BOLT

   8 - 13-PIN PLUG CONNECTOR

   9 - BOLT

   10 - ADAPTER PLUG

3. Install the Torx® socket bolts (3) and tighten to the proper. Refer to TECHNICAL SPECIFICATIONS .
4. Install a new oil filter (4).
5. Install oil pan (5) and tighten to the proper. Refer to TECHNICAL SPECIFICATIONS .
6. Install the adapter plug (10) into the transmission housing and tighten to the proper. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

   1 - PLUG CONNECTOR

   2 - ADAPTER PLUG

7. Check O-ring on plug connector (1), and replace if necessary.
8. Install the plug connector (1) into the adapter plug (2). Turn bayonet lock of adapter plug (2) clockwise to connect plug connector (1).
9. Position y-pipe into place.

   Courtesy of CHRYSLER GROUP, LLC

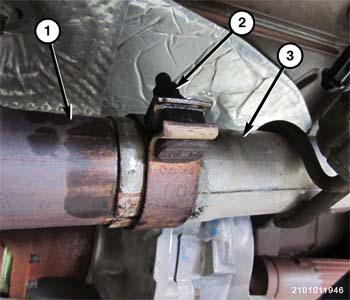

10. Tighten the y-pipe (3) to catalytic converter bolts (1). Refer to TORQUE SPECIFICATIONS - GAS .

    Courtesy of CHRYSLER GROUP, LLC

11. Tighten the y-pipe (1) to exhaust pipe clamp (2) Refer to TORQUE SPECIFICATIONS - GAS .
12. Install the transmission skid plate. Refer to PLATE, SKID, TRANSMISSION, INSTALLATION .
13. Lower the vehicle.
14. Connect the negative battery cable.
15. Fill the transmission with the correct oil using the standard procedure. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
