Draining - Gas

Courtesy of CHRYSLER GROUP, LLC

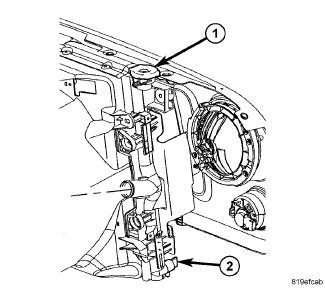

1 - RADIATOR PRESSURE CAP

2 -DRAINCOCK

WARNING:

Do not remove the cylinder block drain plugs or loosen the radiator draincock with system hot and under pressure. Serious burns from coolant can occur.

NOTE:

DO NOT WASTE reusable coolant. If the solution is clean, drain the coolant into a clean container for reuse.

NOTE:

Radiator draincock is located on the right/lower side of radiator facing to front of vehicle.

Remove radiator pressure cap from radiator or coolant recovery container as necessary.
Raise and support vehicle.
Attach one end of a hose to the draincock. Put the other end into a clean container. Open draincock and drain coolant from radiator.
If necessary, siphon coolant from coolant recovery container. (Diesel engine)
