Shroud, Steering Column, Upper: Installation

Courtesy of CHRYSLER GROUP, LLC

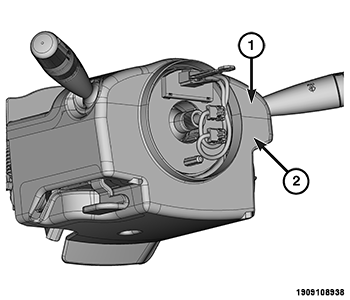

1. Install the upper shroud (1) to the lower shroud (2) clipping the shrouds to one another.
2. Install the three screws attaching the lower shroud (2) to the column.
3. Install the steering wheel. Refer to WHEEL, STEERING, INSTALLATION .
