Module, HVAC: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the A/C and Heater Control. Refer to CONTROL, A/C AND HEATER, REMOVAL .
    GC0156251Courtesy of CHRYSLER GROUP, LLC

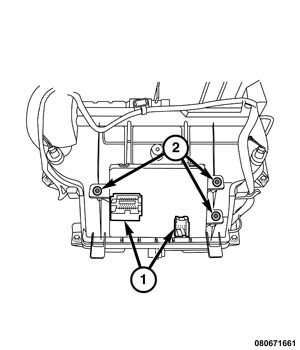

  3. Disconnect the wire harness connectors (1) from the A/C heater module.
  4. Remove the three A/C heater module retaining screws (2).
  5. Remove the A/C heater module from the HVAC housing.
