Module, Drivetrain Control (DTCM): Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the cargo load floor. Refer to LOAD FLOOR, CARGO, REMOVAL .

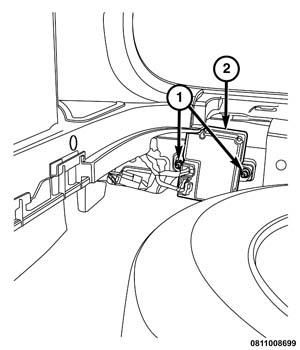

    GC0159573Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the Drivetrain Control Module (DTCM) wire harness connectors.
  5. Remove the two nuts (1) holding the DTCM in place.
  6. Remove the DTCM.
