Sensor, Fuel Tank Pressure: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Remove the fuel filler cap to relieve tank pressure.
Raise and support the vehicle. Refer to HOISTING RECOMMENDATIONS .

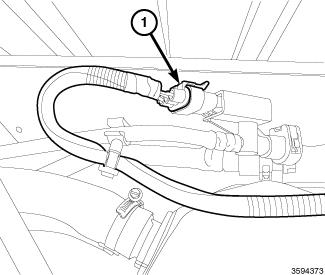

Disconnect the fuel tank pressure sensor electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC
Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.

Courtesy of CHRYSLER GROUP, LLC
The fuel tank pressure sensor seal (1) can be reused if not damaged.
