Throttle Body: Installation

Courtesy of CHRYSLER GROUP, LLC

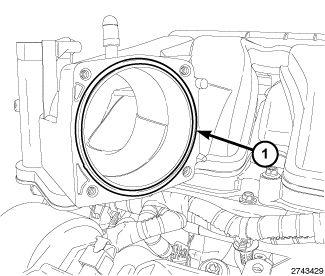

Check the condition of the throttle body-to-intake manifold seal (1). The seal can be reused if not damaged.
Clean the mating surfaces of the throttle body and intake manifold.

Courtesy of CHRYSLER GROUP, LLC

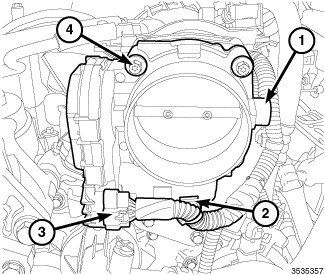

Position the throttle body (1) to the intake manifold.
Install the four throttle body mounting bolts (4) and tighten in a criss-cross pattern sequence to 9 N.m (80 in. lbs.).
Connect the electrical connector (3) to the Electronic Throttle Control (ETC) (1) and secure the ETC harness to the clip (2) on the throttle body.
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
Connect the negative battery cable.
