Sensor, Crankshaft Position: Removal

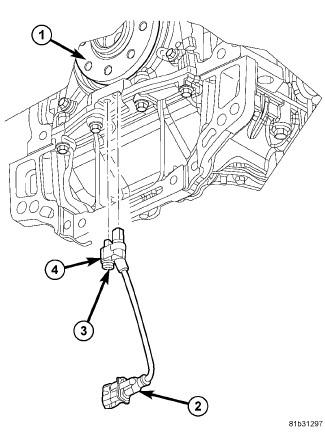

GC0085650Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the bolts and the access cover.
  4. Disconnect the Crankshaft Position Sensor (CKP) wire harness connector (2).
  5. Remove the bolt (3) and the CKP sensor (4).
