Sensor, Air Temperature, Intake: Removal

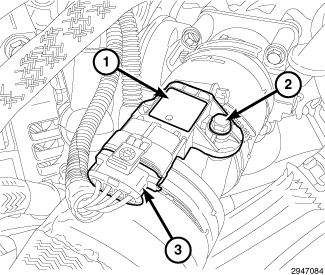

GC0148204Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Clean area around IAT/MAP sensor.
  3. Disconnect the IAT/MAP sensor wire harness connector (3).
  4. Remove the bolt (2) and IAT/MAP sensor (1).
