Shield, Heat: Removal

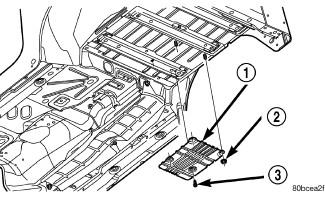

GC0131087Courtesy of CHRYSLER GROUP, LLC
1 - MUFFLER HEAT SHIELD - REAR
2 - NUTS
3 - SELF TAPPING SCREWS
  1. Raise and support the vehicle.
  2. Remove the screws or nuts holding the heat shields to the frame or floor pan.

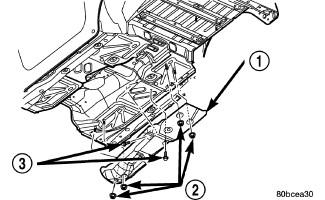

    GC0131088Courtesy of CHRYSLER GROUP, LLC
    1 - MUFFLER HEAT SHIELD - MIDDLE
    2 - NUTS
    3 - SELF TAPPING SCREWS
  3. When removing muffler heat shield, the muffler front support bracket must be removed first.
  4. Slide the shields out around the exhaust system.
