Outlet, Power, 12 V: Removal

Disconnect and isolate the battery negative cable.

Courtesy of CHRYSLER GROUP, LLC

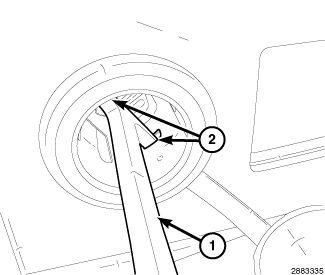

Look inside and note position of the retaining bosses (2).
Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) (1) into the retaining bosses (2) of the power outlet.
Pull out the base through the mounting ring by gently rocking the tool.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the harness connector (1) from the power outlet (2).
Set the base aside and remove the base mount ring.
