Outlet, Power, 115 V: Installation

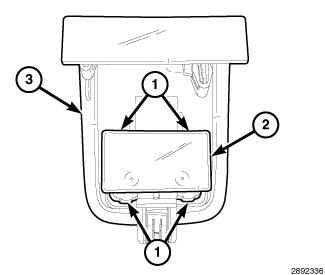

GC0148187Courtesy of CHRYSLER GROUP, LLC
  1. Insert the 115V power outlet (2) into the bracket (3).

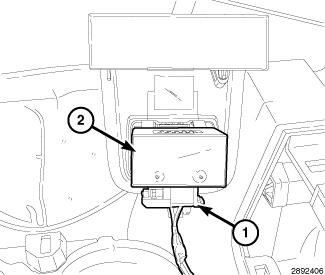

    GC0148188Courtesy of CHRYSLER GROUP, LLC
  2. Connect the electrical connector (1) to the 115V power outlet (2).
  3. Install the 115V power outlet assembly into the center console.
  4. Close the center console.
  5. Connect the negative battery cable.
