Motor, Window Regulator: Installation

NOTE:

The power window motor may need to actuated momentarily to line up the gear in the drive assembly with the regulator.

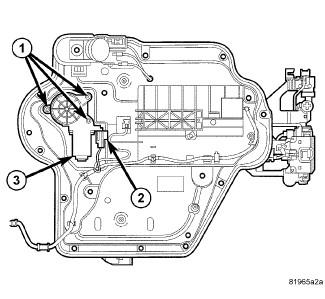

GC0131382Courtesy of CHRYSLER GROUP, LLC
  1. Connect the power window motor electrical connector (2) to the motor electrical connector receptacle.
  2. Position the power window motor and gear assembly (3) on the carrier plate aligning the drive gear with the regulator.
  3. If necessary, temporarily connect the battery to actuate the motor.
  4. Install and tighten the three fasteners (1) that secure the power window motor and gear assembly to the carrier plate.

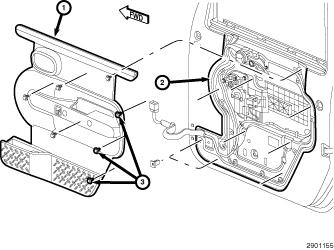

    GC0139228Courtesy of CHRYSLER GROUP, LLC
  5. Reinstall the door interior trim panel (2), Refer to PANEL, DOOR TRIM, INSTALLATION or refer to PANEL, REAR DOOR TRIM, INSTALLATION for the appropriate procedure.
  6. Connect the negative battery cable.
