Switch, Remote Radio: Installation
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
On vehicles equipped with airbags, refer to electrical, restraints before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
- Connect the wire harness connector to the remote radio switch.
- Position the remote radio switch to the steering wheel and secure the wire harnesses.

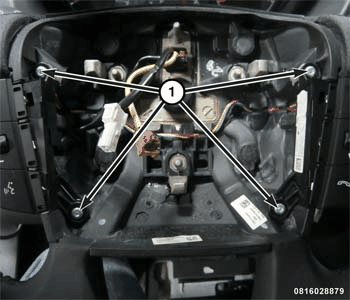

- Install and securely tighten the four screws (1).
- Install the driver side airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
