Section 263 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Installation: Tweeter
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

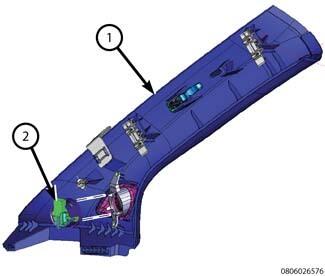

- Install the tweeter (2) into the A-pillar trim panel clips.
- Connect the wiring harness to the tweeter.
- Install the A-pillar trim panel (1). Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
- Connect the negative battery cable.
